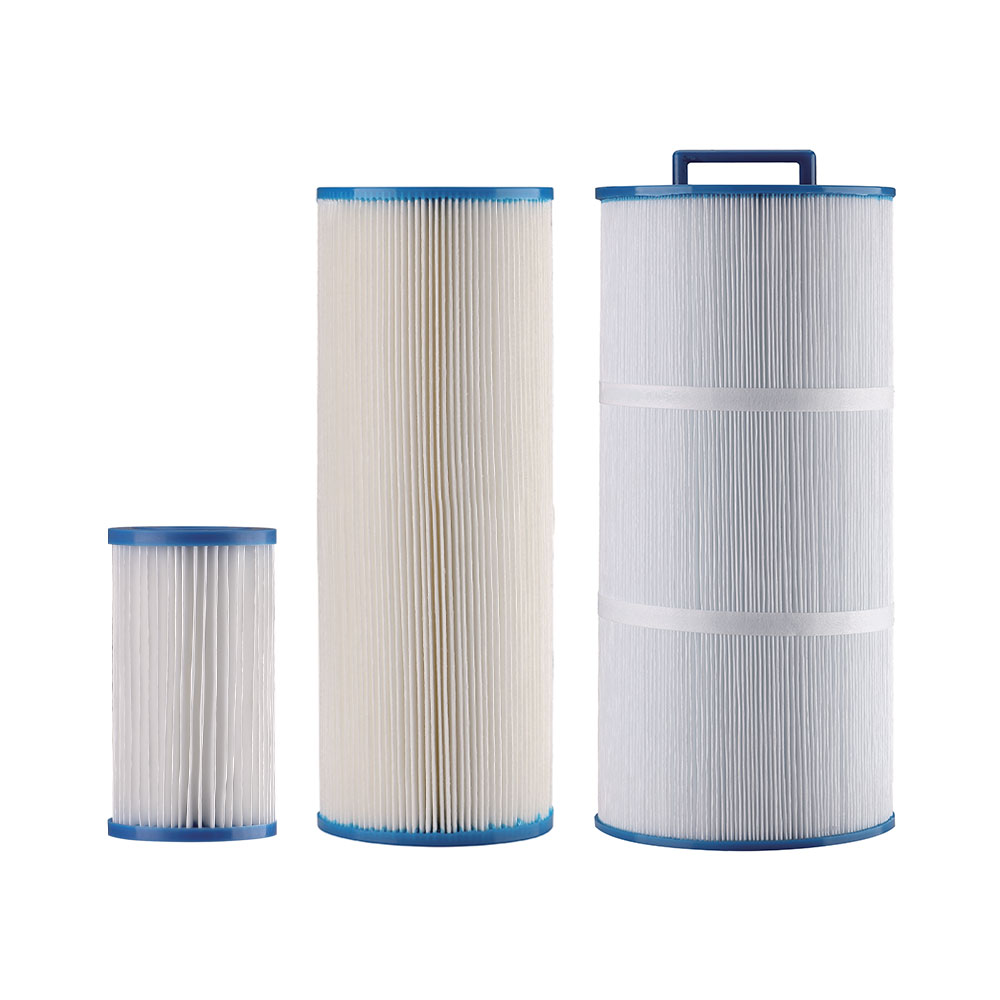

Pleated pool & SPA filter-PS Series

This filter is fabricated by folding antibacterial polyester fiber material into multiple layers. The filter can have either the end caps made of PP material or the soft end caps made using AB curing. The filter possesses mechanical strength, light resistance, and high-temperature resistance. Furthermore, the filter can be reused through regular cleaning, thereby reducing both the frequency of replacement and the total usage cost.

Feature

High rejection rate and large dirt holding capacity

High flow and low water pressure drop

Can easily be cleaned for reuse

Application

Household swimming pool

Public swimming pool

Children SPA water circulation

PREV: RO membrane elements-ARO Series NEXT:High-flow pleated filter element-PH Series

PARAMETERS

Material of Components
Filter material	PP, polyester film
End cap	PP, PO
Sealing gasket	NBR or silicone rubber
Inner bracket	PE
Applicable Conditions
Water temperature	3-45℃
Inlet water pressure	0.1-0.6 MPa
Nominal micro rating	5-20μm
Dimensions
End cap outer diameter (mm)	143/66/90/115/143
End cap inner diameter (mm)	16/28/30/50/50
Length (“)	9.75/10/100/80/253

1.The above data are the results obtained by our laboratory.

2.Due to the difference in water quality and water consumption, the replacement cycle of the filter element will be different, depending on the actual use.
