600GPD Smart Control Remineralize Reverse Osmosis System

600GPD Smart Control Remineralize Reverse Osmosis System

ABT-RO1721B

Filtration system:
PPC filter: PP+C+PP composite filter;
RO filter: Reverse Osmosis membrane filter;
T33 filter: T33 post-position carbon block.

Flow Rate: 1.56L/min
Purified/drain ratio: 2:1

Personalized Functions:
● Smart control to indicate working status and filter life.
● Remineralize to get mineral elements and better taste.
● Anti-flooding structure;
● Dual purified water for cleaning and direct drinking purpose;

Faucet type for option:
single/dual/led ring faucet/smart faucet

PREV: No previous article NEXT:AW-RA03 Series IOT (wifi) Remote Control Reverse Osmosis Purification Unit

Introduction to design selling points
● Integrated water leakage prevention design, plus external leakage sensor, to achieve zero risk of water leakage.
● The fuselage design is high-end, which greatly improves the utilization rate of kitchen space;
● Abbott's patented dual-absorbing silent design, with noise less than 50 dB.

PARAMETERS

Model	ABT-RO1721B	Rated power	80W (varies according to flux)
Product size	420138385mm	Water inlet pressure	0.1-0.4MPa
Flux	600G (400~800GPD)	Working pressure	0.4-0.8MPa
Current Speed	1.56L/min	Inlet water temperature	5-38℃
Filter structure	PPC+RO+T33	Ambient temperature	4-40℃
Filter level	Level 5	Rated voltage	24V
Filter element replacement life	PCT: 6-12 months RO: 24-60 months T33:12-24 months	Rated net water volume	6000L for single outlet (6000L+6000L for double outlet)
Filter element type	Disposable filter element	Water leakage alarm reminder	All indicators flash and beep
Body function display(customizable)	Filter element life display / Abnormal indicator / Function key: flush, reset
Optional faucet	Single water outlet / Double water outlet / Intelligent screen display / LED light ring single and double water outlet

1.The above data are the results obtained by our laboratory.

2.Due to the difference in water quality and water consumption, the replacement cycle of the filter element will be different, depending on the actual use.

The highlight of water purifier

Mobile app intelligent control can check the working status and filter life of the water purifier online at any time.

The IOT module can be customized for this water purifier to intelligently control the operating status of the water purifier, such as flushing and resetting, and monitor the remaining life of the filter element at any time. When an exception occurs, the app's intelligent butler will give a warning signal, so that you can not miss any exception alarm, avoid the trouble of bending down to check the machine status, and can also arrange a time for exception handling in advance. The operation is simple and convenient, and effectively ensures the safety and health of the family's drinking water.

The double-outlet filter water circuit is designed with a medium-range flow of pure water, which can fill a cup of 150ml pure water in 5.8 seconds.

The customized pure water flow rate of this RO water purifier is 600GPD, which can fill a cup of 150ML pure water in 5.8 seconds to meet the needs of mid-range water flow in families. At the same time, two filtering waterways are designed. The flow rate of pure water is 600GPD, and the flow rate of purified water is higher than that of pure water.

Mineral elements are replenished to make the taste better and healthier.

RO membrane filtration precision is too high (0.0001um), all metal ions will be filtered out, including minerals beneficial to the human body, such as calcium Ca, magnesium Mg, iron Fe, zinc Zn, etc., leaving only H2O water molecules. Not only that, the pure water filtered by RO membrane tastes bland, and many people in Europe and America may find it bad to drink. In order to improve the taste, this water purifier is specially equipped with a separate T33 carbon rod filter element, which supplements these mineral elements. In addition, it can be customized to add trace elements such as selenium, selenium, and strontium Sr, which are beneficial to the human body, so as to achieve true healthy and nutritious mineral water, which is particularly important for children in the growth stage and the elderly with osteoporosis and degeneration.

Filter system installation,

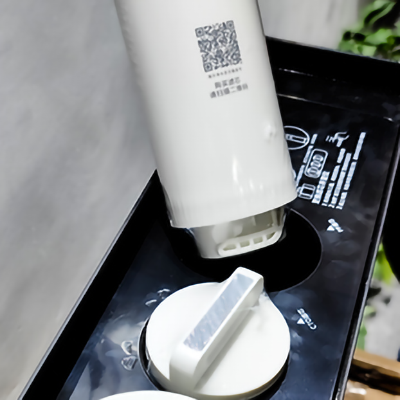

Filter element life reminder and filter element replacement


Easy installation and DIY assembly	Filter element life monitoring at any time	Easy and convenient replacement of filter element

● It can save money and protect the environment. It can save the cost of purchasing mineral water, and reduce the consumption of plastic, making it more environmentally friendly.
● The compact design is suitable for the narrow space in the kitchen. The design without water storage bucket also greatly improves the utilization of the kitchen space

Accessories drawing
